What is the RAL of Doosan Robot?
When minor scratches or surface damage occur during Doosan robot usage, the issue is often resolved by repainting rather than replacing the housing. In these cases, knowing the RAL color code for Doosan robots is important.
Answer
RAL (Reichs-Ausschuss für Lieferbedingungen) is a color standard system. Originating in Germany, it is a representative European color specification widely used for precisely designating colors in paints, coatings, plastics, furniture, and building materials.

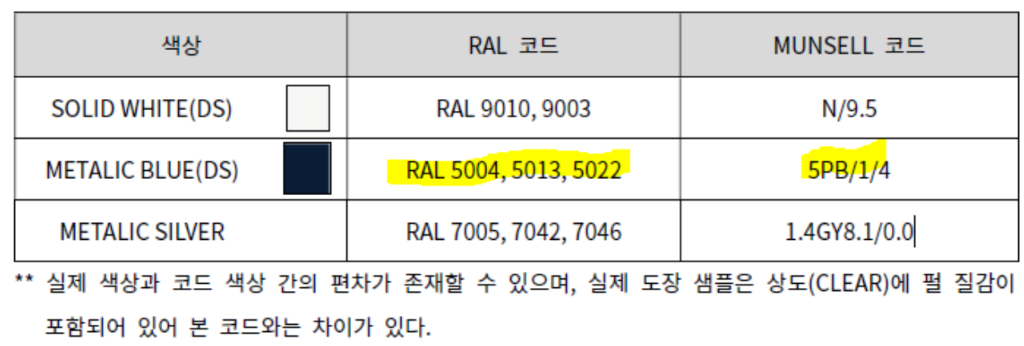

Please refer to the table below for the RAL color codes used for Doosan robots.
Color | RAL Code | MUNSHELL Code |
| SOLID WHITE (DS) | RAL 9010, 9003 | N/9.5 |
| METALIC BLUE (DS) | RAL 5004, 5013, 5022 | 5PB/1/4 |
| METALIC SILVER | RAL 7005, 7042, 7046 | 1.4GY8.1/0.0 |
※ There may be a discrepancy between the actual color and the color code, as the actual paint sample contains a pearl texture in the top coat (CLEAR), which differs from the code.
